Agricultural machinery: tractors, combine harvesters, crop sprayers, bulldozers, graders, etc.
Automotive industry: power steering pump, steering gear thrust washers, disc brakes, shock absorbers, hinges, wiper, chair recliners, air valves and solenoid valves, etc.;
Business machines: duplicator, fax machine, automatic printing devices, mail processing machinery.
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions.
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines.
And materials handling, marine engine, packaging, textile equipment, tools...etc.
| Data |
Grade |
SF-1W |
| Material |

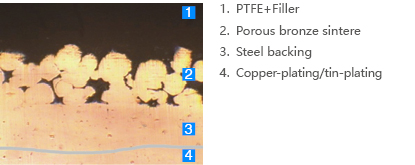

Steel+Bronze+(PTFE+Filler) |
| Applications |
|
Application: medium, high-pressure gear pump, ram pump, vane pumps, etc. |
| Max Load Capacity P |
Static Load N/mm2 |
250 |
| Dynamic Load N/mm2 |
140 |
| Oscoillation Load N/mm2 |
60 |
| Max Line Speed V |
Dry Friction m/s |
2.5 |
| Oil Lubrication m/s |
＞5 |
| PV Value Limit |
Dry Friction m/s N/mm2·m/s |
1.0 |
| Oil Lubrication m/s N/mm2·m/s |
10 |
| Friction Coef u |
Dry Friction |
0.08~0.25 |
| Oil Lubrication |
0.02~0.08 |
| Mating Axis |
Hardness HB |
＞220 |
| Roughness Ra |
0.4~1.25 |
| Working Temperature ℃ |
|
-200~+280 |
| Thermal Conductivity W/mk |
|
40 |
| Coefficient Of Linear Xpansion |
|
11×10-6/K |
| Outside Surface Plating |
|
copper/tin |
| In addition to the standard products shown in the catalog, you can also provide non-standard products or order according to customer requirements. |
